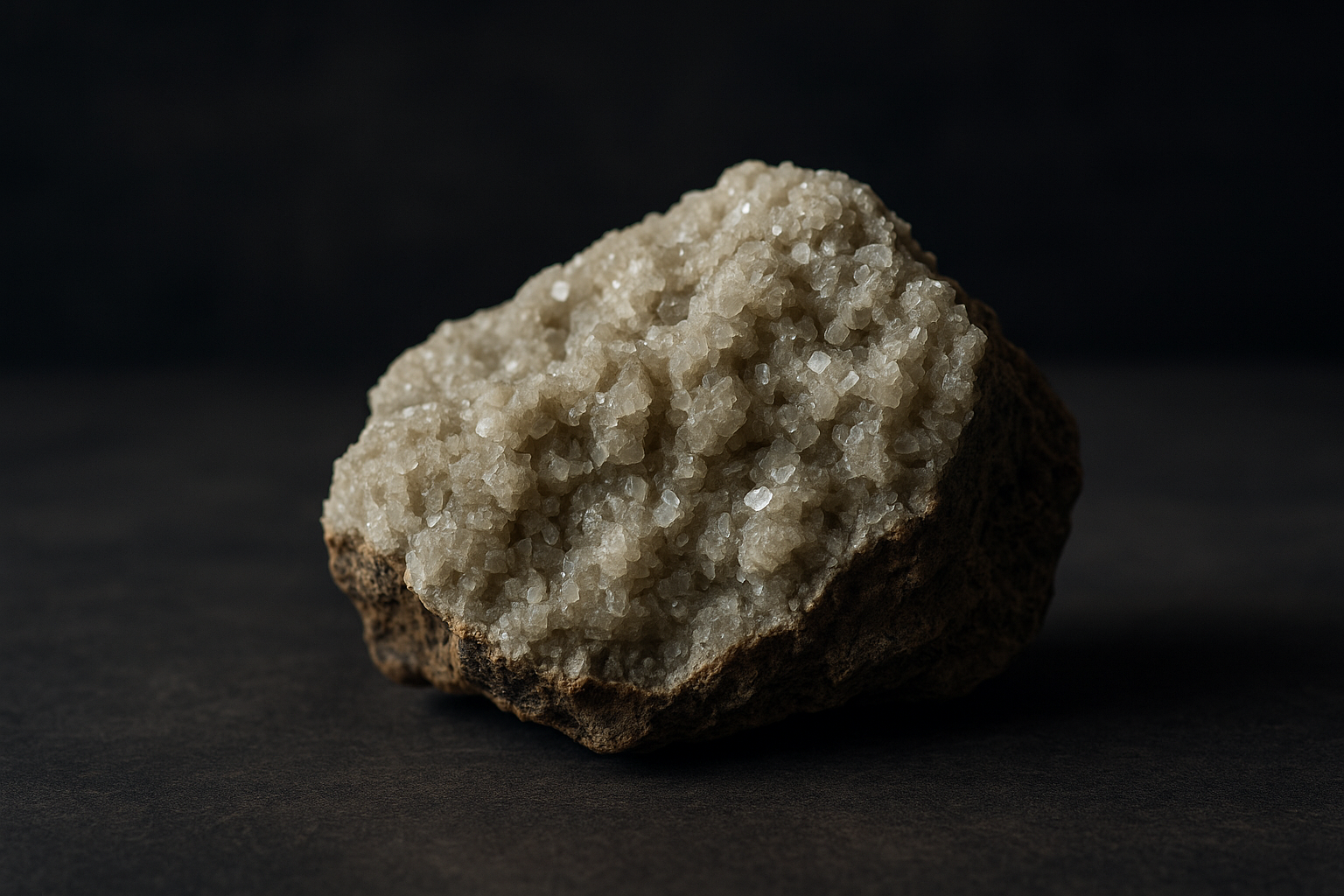

Zeolite for Industrial Gas Purification
Natural clinoptilolite selectively adsorbs polar, small molecules such as CO₂, H₂O, and H₂S through its 4.0–7.0 Å micropores and CEC 1.6–2.0 meq/g cation sites. It exhibits physisorption behavior in which uptake increases at lower temperatures (Davarpanah et al., 2020), making it a candidate adsorbent for PSA packed beds in biogas and natural gas purification. Although its adsorption capacity is lower than that of synthetic molecular sieves, its low cost makes it cost-effective for primary bulk removal and guard-bed roles.
What Is the Challenge in Industrial Gas Purification?
In industrial gas processes such as biogas upgrading, natural gas pretreatment, hydrogen and syngas purification, compressed air drying, and exhaust gas post-treatment, the key task is separating and removing CO₂, H₂S, moisture (H₂O), VOCs, and volatile odor compounds to the target purity. These impurities cause operating problems such as reduced calorific value, corrosion of piping and compressors, catalyst poisoning, and condensation or freezing.
In adsorptive purification (PSA, Pressure Swing Adsorption / TSA, Temperature Swing Adsorption), separation efficiency and operating cost are determined by the adsorbent's pore size, polarity, and regenerability. Selecting an adsorption medium matched to operating conditions such as gas flow rate (Nm³/h), pressure, dew-point target, cycle time, and heat-of-adsorption management is important.
Why Zeolite Is Considered for Gas Purification
Natural clinoptilolite has uniform 4.0–7.0 Å micropores in its crystalline framework, enabling molecular-sieve-type selective adsorption that exploits differences in molecular size and polarity. Polar, small molecules such as CO₂ (kinetic diameter about 3.3 Å) and H₂O are strongly adsorbed within the pores and at cation sites, while CH₄ (about 3.8 Å) and N₂ are adsorbed relatively weakly, allowing separation. The strong electric field created by the exchangeable cations in the framework (CEC 1.6–2.0 meq/g: Na⁺, K⁺, Ca²⁺, etc.) enhances the adsorption selectivity of CO₂, which has a large quadrupole moment.
Adsorption Mechanism — What Is Captured Where
In gas purification, separation by clinoptilolite occurs through three overlapping contributions.
- Electrostatic interaction at cation sites (physisorption): The local electric field created by the exchangeable cations interacts with the quadrupole moment of CO₂ and the dipole moments of H₂O and H₂S. Because the heat of adsorption is smaller than for chemisorption, an advantage is that it regenerates with depressurization (PSA) alone.
- Molecular-sieve effect from pore size: The 4.0–7.0 Å channels preferentially pass and adsorb CO₂ and H₂O, which are smaller than CH₄ and N₂, creating kinetic selectivity.
- Framework hydrophilicity (moisture uptake): The lower the Si/Al ratio, the stronger the hydrophilicity and the more strongly H₂O is captured. This is advantageous for gas drying but has the two-sided nature of competing with CO₂ sites in moist gas.
The key point here is that the separation targets are polar, cation-affinity components (CO₂, H₂O, H₂S, NH₃). The negatively charged framework of unmodified clinoptilolite is effective for such polar, cationic molecules but has low affinity for non-polar hydrocarbons or anionic molecules, so the target component must be defined first.
KMIZEOLITE's natural clinoptilolite is 97% pure and mined and processed at the Amargosa Valley mine in Nevada, USA. With a specific surface area of 40.0 m²/g, pore diameter of 4.0–7.0 Å, thermal stability of 700°C, and a pH stability range of 3.0–10.0, it maintains framework stability and withstands repeated regeneration even under the high-temperature heating of TSA regeneration and acidic gas (H₂S, CO₂) environments. Compared with synthetic zeolites (e.g., 4A, 13X) or activated carbon, its specific surface area and unit adsorption capacity are lower, but its low cost makes it cost-effective in primary bulk removal or guard beds.
Gas Adsorption Behavior Confirmed by Research
Davarpanah et al. (2020, Journal of Environmental Management) reported that CO₂ adsorption on natural clinoptilolite shows strongly temperature-dependent physisorption behavior, with uptake increasing at lower temperatures, which is advantageous for PSA-type low-temperature, pressurized operation (Davarpanah et al., 2020, DOI:10.1016/j.jenvman.2020.111229). The mechanisms and design variables of adsorption processes overall are summarized in a comprehensive Chemical Reviews (2022) review, which shows that the pore and cation structure of zeolites govern gas separation selectivity (Zeolites in Adsorption Processes, Chem. Rev. 2022, DOI:10.1021/acs.chemrev.2c00140).
The potential of natural zeolites for biogas, syngas, and hydrogen purification was reviewed by Al-Mamoori et al. (2024, Cogent Engineering) (DOI:10.1080/23311916.2024.2398912), and De Gennaro et al. (2024, Environmental Science and Pollution Research) classified the sustainable applications of clinoptilolite into environmental catalysis, CO₂ removal, and gas purification, summarizing how CO₂ affinity varies with framework type (MOR, ZSM-5, etc.) (DOI:10.1007/s11356-024-33656-5). The effect of clinoptilolite addition on anaerobic digestion stabilization and biogas production in digestion processes was reported by Garuti et al. (2020, Materials) (DOI:10.3390/ma13184127). On the odor and VOC removal side, Cataldo et al. (2024, Materials) studied the odor-molecule adsorption behavior of zeolites including natural clinoptilolite (DOI:10.3390/ma17133088), and Sahin et al. (2020, Building and Environment) reviewed VOC and odor adsorption applications in indoor air quality (DOI:10.1016/j.buildenv.2020.106949).
Adsorbent Comparison Perspective
| Adsorbent | Main Target | Regeneration Method | Position vs. Natural Clinoptilolite |
|---|---|---|---|
| Natural clinoptilolite | CO₂·H₂O·H₂S·NH₃ (polar) | PSA (low temp/pressurized)/TSA | Low cost, primary bulk removal/guard bed |
| Synthetic 13X / 5A | CO₂·H₂O | PSA/TSA | High capacity/selectivity but high cost |
| Activated carbon | VOC·H₂S·non-polar | TSA/steam | Strong for non-polar VOCs, vulnerable to moisture |
KMIZEOLITE Key Properties
| Item | Value |
|---|---|
| Clinoptilolite purity | 97% |
| Cation exchange capacity (CEC) | 1.6–2.0 meq/g |
| Specific surface area | 40.0 m²/g |
| Pore diameter | 4.0–7.0 Å |
| pH stability range | 3.0–10.0 |
| Hardness | 4.0–5.0 Mohs |
| Thermal stability | 700°C |
| Specific gravity | 1.89 |
| Bulk density | 45–54 lbs/ft³ |
| Certifications | OMRI KMI-10365, FDA GRAS, TSCA, EN-71-3 |
Application Examples of Zeolite for Industrial Gas Purification
Below are representative application scenarios in which natural clinoptilolite is considered in the gas purification field. The adsorption bed is generally operated by packing granular products into a packed column.
- Biogas upgrading: PSA packed bed that adsorbs and removes CO₂, H₂S, and moisture from digester gas to increase methane concentration (methane purification, biomethanation)
- Compressed air/gas drying: Moisture (H₂O) adsorption drying bed for dew-point reduction, regenerative adsorptive dryer
- VOC/odor gas removal: Post-treatment filter bed that adsorbs volatile organic compounds and odor components from exhaust and process gas
- Hydrogen/syngas pretreatment: Guard bed that removes trace CO₂ and H₂O to protect downstream catalysts and membranes
- Test/pilot application: Method to pre-verify adsorption capacity and regenerability with a small sample under on-site gas composition, flow rate, and pressure conditions
Recommended Particle Size and Product Specifications
In gas purification adsorption beds, the balance between pressure drop and adsorption rate is important. For packed columns and air scrubbers, Extra Coarse (4×8 mesh) and Coarse Granule (8×14 mesh) are suitable due to their low airflow resistance, and medium granules are considered for precision guard beds that need more adsorption surface area. Powder has low air permeability and is unsuitable for standalone use in gas packed beds. Please refer to the table below.
| Product Group | Mesh | Particle Size | Representative Use |
|---|---|---|---|
| Powder | 100 mesh or finer | <150μm | Pozzolan, feed, powder adsorption |
| Fine Granule | 30×50 mesh | 0.3–0.6mm | Water treatment, filtration, soil |
| Medium Granule | 14×40 mesh | 0.4–1.4mm | Filter beds, bedding, flooring |
| Coarse Granule | 8×14 mesh | 1.4–2.4mm | Pools, snow melting, large-scale filtration |
| Extra Coarse | 4×8 mesh | 2.4–4.8mm | Packed beds, air scrubbers |
→ View products by mesh size · Product selection guide by application
Pilot Testing and On-Site Review Points
When applying zeolite to a gas purification process, the following items must be checked together.
- Identify gas composition: Quantify the concentration of target removal components (CO₂, H₂S, H₂O, VOC), the accompanying gas composition, and the inlet and outlet target purities
- Operating pressure and temperature: Decide whether it is PSA (pressurized adsorption/depressurized regeneration) or TSA (thermal regeneration), and design the adsorption and regeneration time per cycle
- Moisture impact assessment: Because of the polar adsorbent characteristics, H₂O competes with CO₂ adsorption sites, so consider upstream drying or guard-bed placement
- Pressure drop and bed height: Manage differential pressure through particle size, packed-column cross-sectional area, and bed height according to gas flow rate (Nm³/h) and superficial velocity
- Regeneration conditions: Test the TSA regeneration temperature (within clinoptilolite's thermal stability of 700°C), purge gas volume, and capacity recovery rate over repeated cycles
- Field-specific considerations: Because natural clinoptilolite shows physisorption behavior in which CO₂ uptake increases at lower temperatures (Davarpanah et al., 2020), low-temperature, pressurized operation is advantageous for securing adsorption capacity.
→ Check TDS (Technical Data Sheet) · Check MSDS (Material Safety Data Sheet)
Gas Purification FAQ
Which gas components can natural zeolite remove?
Through its 4.0–7.0 Å micropores and cation sites (CEC 1.6–2.0 meq/g), natural clinoptilolite selectively adsorbs polar, small molecules such as CO₂, moisture (H₂O), some VOCs and odor compounds, and H₂S. CO₂ has a large quadrupole moment and is readily adsorbed by the electric field created by the cations, making it a candidate for biogas and natural gas purification as well as gas drying. Because separation performance varies with the accompanying gas composition, pilot testing is required.
Which method is it suited to, PSA or TSA?
CO₂ adsorption on natural clinoptilolite shows physisorption behavior in which the adsorbed amount increases at lower temperatures (Davarpanah et al., 2020), so it is well matched to PSA, which adsorbs at low temperature and elevated pressure and regenerates via depressurization. For strongly bound components such as moisture, thermal regeneration (TSA) is advantageous, and repeated regeneration is possible within a thermal stability limit of 700°C.
Which particle size (mesh) should be used in a packed bed?
For gas packed columns and air scrubbers, granular Extra Coarse (4×8 mesh) and Coarse Granule (8×14 mesh) with low pressure drop are generally suitable. Powder (100 mesh) has high airflow resistance and is not recommended for standalone use in gas packed beds. Please refer to the product selection guide by application.
Does moisture affect CO₂ adsorption?
Yes. Because clinoptilolite is a polar adsorbent, H₂O competes for CO₂ adsorption sites and can reduce CO₂ uptake. Therefore, a process design that places a drying stage upstream or arranges a separate guard bed for moisture removal is recommended.
How does it differ from synthetic zeolites (13X/5A) or activated carbon?
Natural clinoptilolite has a lower specific surface area and unit adsorption capacity than synthetic 13X/5A, but its cost is significantly lower, so it is evaluated for economic value in bulk primary removal of CO₂/H₂O/H₂S or as a guard bed protecting high-performance downstream adsorbents. Activated carbon is strong with non-polar VOCs but vulnerable to moisture, whereas clinoptilolite shows selectivity for polar, cation-affinity components such as CO₂, H₂O, H₂S, and NH₃. It has low affinity for non-polar hydrocarbons or anionic molecules, so combining adsorbents according to the target component is common.
Is adsorption capacity maintained over repeated cycles?
CO₂/H₂O adsorption on clinoptilolite is physisorption with a small heat of adsorption, so it regenerates reversibly with PSA depressurization or TSA heating alone. Its framework thermal stability up to 700°C allows repeated regeneration without structural collapse within typical TSA regeneration temperature ranges. However, the actual capacity recovery rate varies with gas composition, moisture, and regeneration conditions, so checking capacity decay over repeated cycles in a pilot is recommended.
Can I receive a test sample?
Yes, KMIZEOLITE supports the provision of samples for actual gas purification review. On the sample request page, please leave the target gas composition, flow rate, target purity, and desired particle size.
Inquiries and Sample Requests
If you are considering applying zeolite in the industrial gas purification field, please contact us through the channels below.
Notice
Applicability may vary depending on site conditions, regulations, and test results. Before actual application, a test review suited to the site conditions must be conducted first. Zeolite should be understood not as a universal solution in this field, but as a material that supports existing processes.
Related Pages
science Related Papers
These are academic papers addressing zeolite applications in this field. Please refer to them when reviewing adoption.
- CO2 capture on natural zeolite clinoptilolite: Effect of temperature
Davarpanah, E. et al. — Journal of Environmental Management, 2020 - Zeolites in Adsorption Processes: State of the Art and Future Prospects
Various — Chemical Reviews, 2022 - Natural zeolites for optimized biogas, syngas, and hydrogen production and purification
Al-Mamoori, A. et al. — Cogent Engineering, 2024 - Fundamental properties and sustainable applications of natural zeolite clinoptilolite
De Gennaro, B. et al. — Environmental Science and Pollution Research, 2024 - Effect of Clinoptilolite and Halloysite on Biogas Production during Anaerobic Digestion
Garuti, M. et al. — Materials, 2020 - Odors Adsorption in Zeolites Including Natural Clinoptilolite
Cataldo, E. et al. — Materials, 2024 - Zeolite for indoor air quality: A review of environmental applications
Sahin, O. et al. — Building and Environment, 2020
The papers above are reference materials, and separate review suited to site conditions is required for actual application.
